Mass timer construction screws and fasterners

Valued for its natural beauty, strength, and versatility, wood offers endless possibilities in architecture and design. Conveying warmth and sophistication, it can be used as a load-bearing structure and an interior finish material. Mass timber construction is capturing the imaginations of leading building and design professionals, who continue to evolve and advance its potential.

Our services for successful timber construction

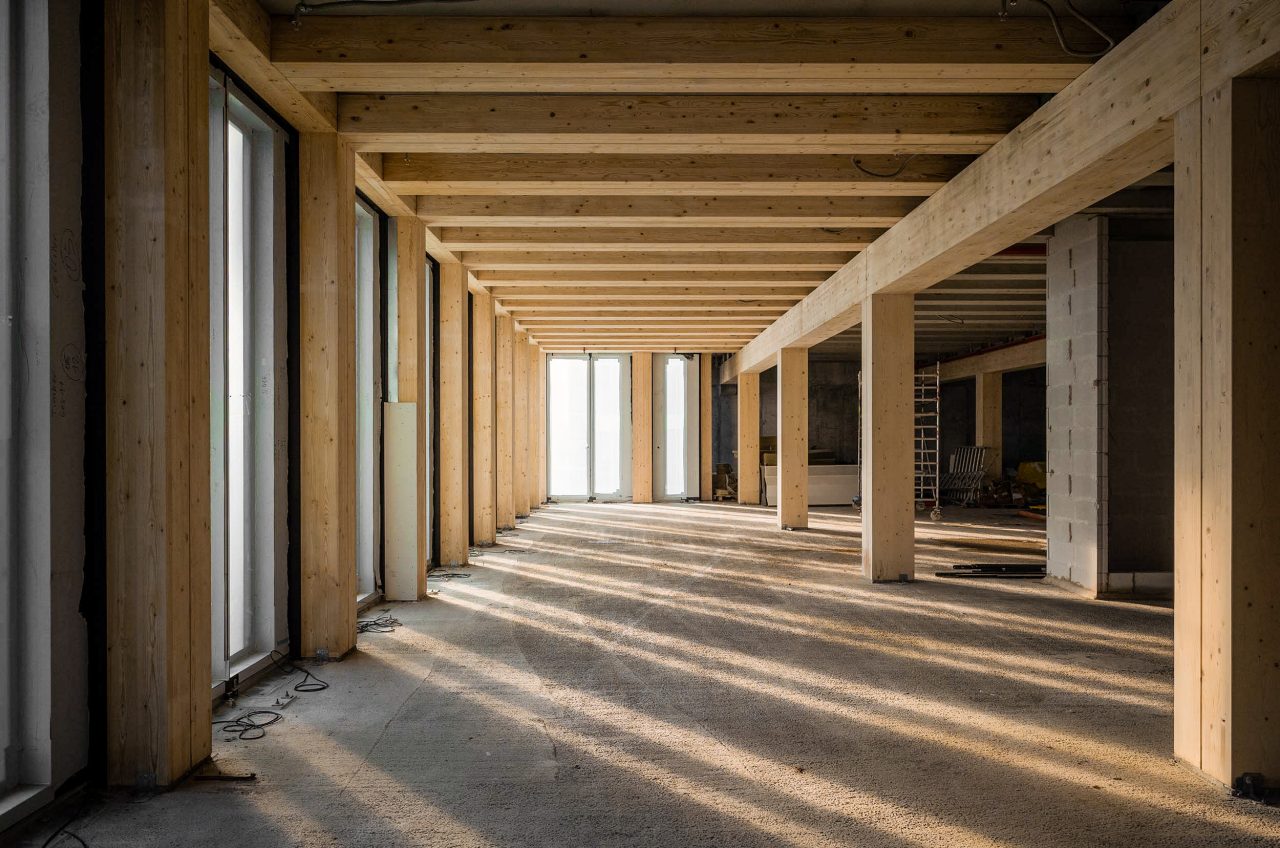

What is Mass Timber?



Mass timber is a type of engineered wood product made from several layers of lumber boards that are glued together to create large structural elements such as columns, beams, and panels. Mass timber is a renewable and sustainable building material that is gaining popularity in the construction industry due to its many benefits, including its strength, durability, and aesthetic appeal.



There are several types of Mass Timber:

  • Cross-laminated timber (CLT): CLT is the most common type of mass timber and consists of several layers of lumber boards stacked perpendicular to each other and bonded with adhesive
  • Glue-laminated timber (glulam): Glulam is made by gluing several layers of lumber boards together in parallel, creating a strong and durable beam or column.





Mass timber has several advantages over traditional building materials such as concrete and steel. It is lightweight, yet strong and durable, and can be used to build tall buildings without the need for a steel or concrete core. Mass timber also has a lower carbon footprint than traditional building materials, as the production process generates less greenhouse gas emissions. Additionally, mass timber is easy to work with and can be cut and shaped on-site, allowing for faster construction times.



In recent years, mass timber has become increasingly popular in the construction industry, with several tall buildings being constructed using this material. The use of mass timber is expected to continue to grow as more architects and builders recognize the benefits of this sustainable and innovative building material.

Cross-Laminated Timber (CLT)



Cross-laminated timber (CLT) is a wood panel system that widely adopted in Europe. The strength, dimensional stability, and rigidity of CLT allow it to be used in mid- and high-rise buildings.

Cross-Laminated-Timber
Glue-Laminated-Timber

Glued-Laminated Timber (glulam/GLT)



Glued-laminated timber (glulam) is a structural engineered wood product commonly used for beams and columns in residential and commercial applications. It is a highly visible form of mass timber in contemporary projects, with long spans framing signature designs left exposed to take advantage of wood’s natural aesthetic.


The characteristics of a SPAX wood building screw at a glance

Eigenschaften einer SPAX Tellerkopf

WIROX - the SPAX exclusive surface



WIROX (colour "silver"), the standard galvanisation with high corrosion protection from SPAX. Thanks to a special production process and different coating thicknesses, SPAX with optimised WIROX surface offers significantly higher corrosion protection compared to conventional bare galvanised screws. The zinc coating thickness has been increased by 25% and is now 10μm - this means that the screws comply with class T2/C2nw in accordance with EN 14592. WIROX is chrome 6 free and therefore significantly more environmentally friendly than conventional surfaces, both in production and in use.

SPAX WIROX Oberfläche

Discover our wood construction screws now

13 Products

Sorting
Timber construction screw, full thread, flat countersunk head, T-STAR plus, CUT point, WIROX, diameter Ø 8 and 10 mm
Universal screw WIROX
  • Head Shape: Flat countersunk head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: CUT
  • Thread Shape: Full thread
Dimensions
Quantity
Timber construction screw, full thread, flat countersunk head, T-STAR plus, CUT point, WIROX, diameter Ø 12 mm
Wood construction screw WIROX
  • Head Shape: Flat countersunk head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: CUT
  • Thread Shape: Full thread
Dimensions
Quantity
Timber construction screw, partial thread, flat countersunk head, T-STAR plus, 4CUT, WIROX, diameter Ø 8 mm
Wood construction screw WIROX
  • Head Shape: Flat countersunk head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: 4CUT
  • Thread Shape: Partial thread
Dimensions
Quantity
Timber construction screw, partial thread, flat countersunk head, T-STAR plus, 4CUT, WIROX. diameter Ø 10 mm
Wood construction screw WIROX
  • Head Shape: Flat countersunk head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: 4CUT
  • Thread Shape: Partial thread
Dimensions
Quantity
HI.FORCE, full thread, washer head, T-STAR plus, 4CUT, WIROX, diameter Ø 8 mm and 10 mm
Wood construction screw WIROX
  • Head Shape: Washer head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: 4CUT
  • Thread Shape: Full thread
Dimensions
Quantity
HI.FORCE, partial thread, washer head, T-STAR plus, 4CUT, WIROX, diameter Ø 8 mm and 10 mm
Wood construction screw HI.FORCE WIROX
  • Head Shape: Washer head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: 4CUT
  • Thread Shape: Partial thread
Dimensions
Quantity
IN.FORCE, full thread, cylindrical head, T-STAR plus, 4CUT, WIROX, diameter Ø 6 mm
Wood construction screw WIROX
  • Head Shape: Cylindrical head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: 4CUT
  • Thread Shape: Full thread
Dimensions
Quantity
IN.FORCE, full thread, cylindrical head, T-STAR plus, CUT point, WIROX, diameter Ø 8 mm
Wood construction screw WIROX
  • Head Shape: Cylindrical head
  • Drive: T-STAR plus
  • Material: Steel
  • Point: CUT
  • Thread Shape: Full thread
Dimensions
Quantity

We help with the choice of screws

Find the right screw for your project – with our screw consultant

For every challenge, SPAX has a screw that is up to it:
Find exactly the fastener your project needs with our screw consultant. With a few clicks you can find the right screw for your application.
